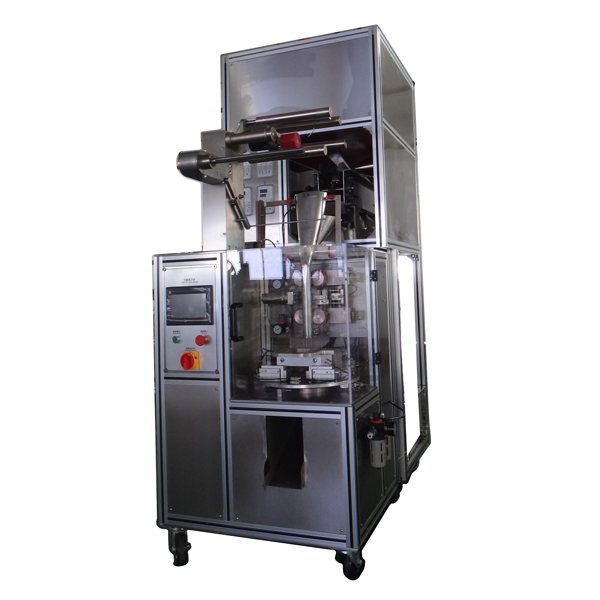

Applications:
Be used for automatically packing products as green tea, black tea, flower tea, health tea, medicine tea, and granule and so on.
Features:

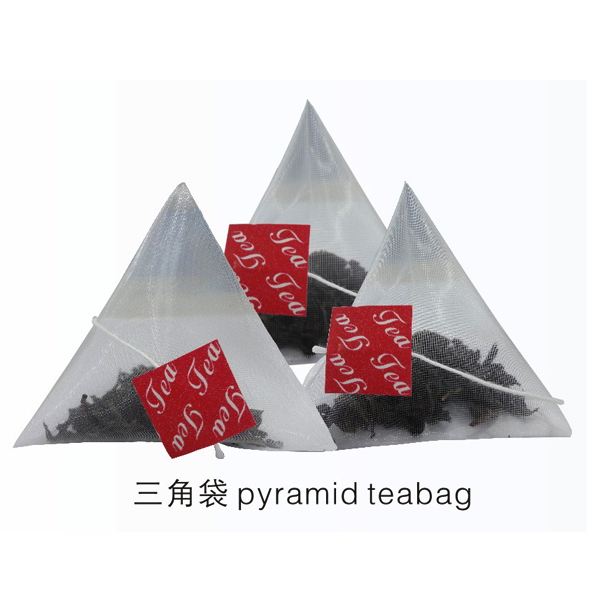

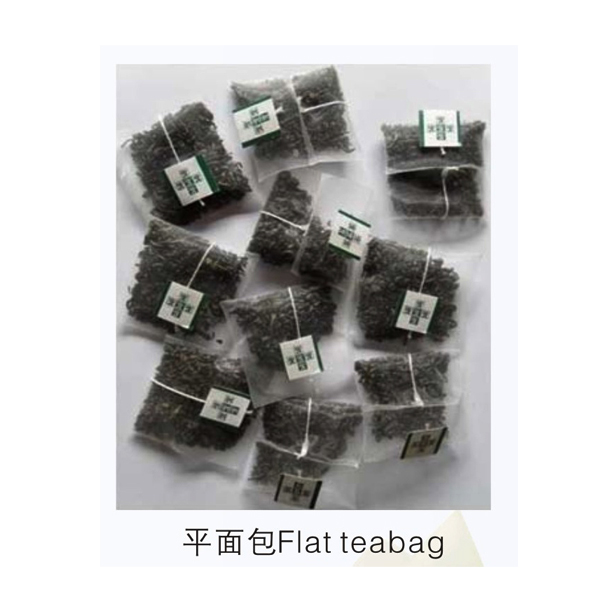

1. This unit can perform either three sides sealing or triangle teabag .just need single bond to change the bag between three sides sealing and triangle shape.
2. Packaging capacity: 3000bags/h (Determined by packing material)
3. Applicable packing materials: Nylon film with thread and label.
4. The precision volumetric metering way very easily in the transformation of filling material. Electronic scale metering can be collocated according to the material.
5. Human-Computer Interface, Omron PLC control, adopted the Panasonic double Servo motor to make the bag .Supplied complete setting functions. Easy operating
6. Main motor overload protection device
7. Packaging material tension automatic adjustment device
8. The machine will automatically stop when issued the warning.
Technical parameters:
|
Model |
YD-SJB01 |
YD-SJB02 |
YD-SJB03 |
YD-SJB04 |
|
Capacity(bags/min) |
30-50 |
20-30 |
30-40 |
30-50 |
|
Bag size(L*W,mm) |
(40-80)*(60-80) |
(40-80)*(60-80) |
(40-80)*(60-80) |
(40-80)*(60-80) |
|
Packing film(mm) |
120,140,160 |
120,140,160 |
120,140,160 |
120,140,160 |
|
Sealing type |
Triangle bag and flat bag |
Triangle bag and flat bag |
Triangle bag and flat bag |
Triangle bag and flat bag |
|
Filling range(ml) |
2-10 |
1-7 |
1-7 |
1-7 |
|
Film thickness |
0.04-0.06mm |
0.04-0.06mm |
0.04-0.06mm |
0.04-0.06mm |
|
Air consumption |
0.6Mpa 0.4m3/min |
0.8Mpa 0.6m3/min |
0.8Mpa 0.6m3/min |
0.8Mpa 0.6m3/min |
|
Total power |
2.2KW |
2KW |
2.2KW |
2.2KW |
|
Power |
Single 220V |
Single 220V |
Single 220V |
Single 220V |
|
Air compressor |
less than 1 cube |
less than 1 cube |
less than 1 cube |
less than 1 cube |
|
Dimension |
780*940*1800mm |
1200*920*2060mm |
1600*800*2650mm |
1600*800*2650mm |
|
The weight of the machine |
400kg |
400kg |
600kg |
650kg | |
