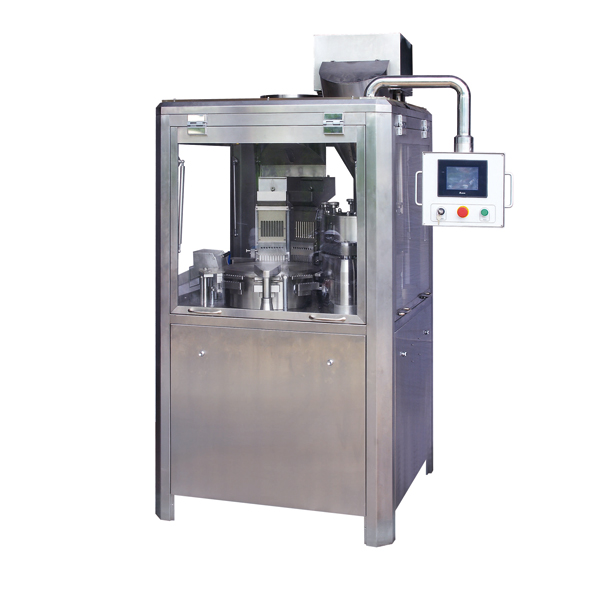

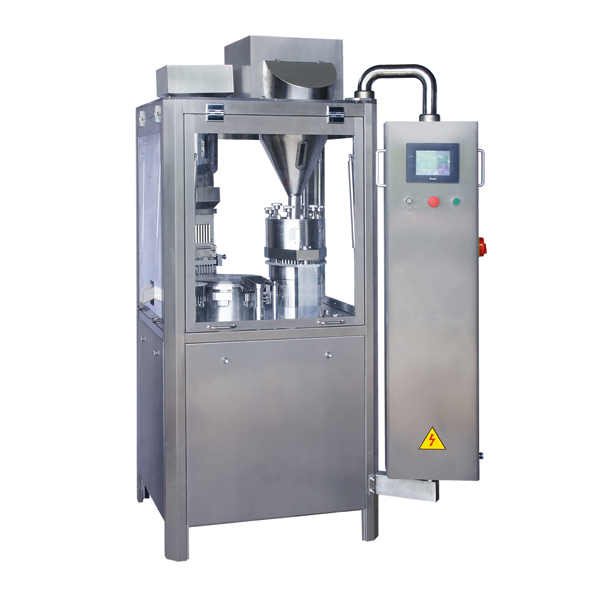

NJP-400/600/800 Fully Automatic Capsule Filling Machine
Print this page
Bookmark this
E-mail Us
Live Messenger
Yahoo Messenger
Skype Me
PDF Download

Product Description

Feature:
1.This machine runs as per automatic separating revert interval, feeding,      removing useless capsules, clipping and capsule, cleaning mould are completed at same time. Which has reached high precision and low noise levels.
2. With the automatic controlled, stepless speed adjusted, display, the machine is easy to operate.
3. This machine is with good suitability. high frequency for filling Chinese and western medicines. Which adopted more holes type working principle, exact calculating, difference of packing are more advantaged than its standard of governments’ pharmacopoeia.
4. It is equipped with safety—protection Unit for people and machine. It can be automatically stopped when the material used up it is a good equipment for a manufacture producing capsules.

Main technical parameters:

Machine model
NJP-800
NJP-600
NJP-400
Max capacity
48000 capsules/hour
36000 capsules/hour
24000 capsules/hour
Suit for capsule size
00#-5#and safety capsule
No. of mould bores
6
5
3
Machine dimensions
700x900x1800 mm
700x900x1800 mm
700x900x1800 mm
Net weight
700 Kg
700Kg
700Kg
Power
380/220V 50/60Hz 5kw
380/220V 50/60Hz 5kw
380/220V 50/60Hz 5kw
Vacuum
20m3/h-0.02-0.05MPa
20m3/h-0.02-0.05MPa
20m3/h-0.02-0.05MPa
Dust Exhaust
220m3/h 2x10P5a
220m3/h 2x10P5a
220m3/h 2x10P5a
Noise
<75dB
<75dB
<75dB
